Black Box, FOCMP62-025M-STSC-OR,

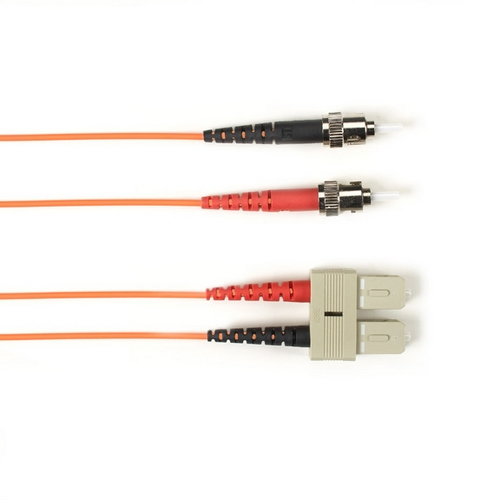

82-ft. 62.5-Micron Plenum Multimode Fiber Optic Cable with ST - SC Connectors - Orange

Get fiber cable in 12 colors for color-coded applications.

Features:

Match Black Box fiber cable to your company, team, or school colors for that special networking application.
62.5-micron multimode cable.
Higher data aggregation in the backbone, riser, and high-speed parallel interconnects (HSPIs).
Full compatibility with a broad range of laser-based and legacy protocols and applications.
Industry-leading CPC® coatings for superior microbend and environmental performance.
Guaranteed for life!

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Attenuation	850 nm: = 2.9 dB/km; 1300 nm: = 0.6 dB/km
Bandwidth	Intermediate performance EMB: 850 nm: 220 MHz/km; Legacy performance EMB: 850 nm: 200 MHz/km; 1300 nm: 500 MHz/km
Cladding Diameter	125 µm
Core Diameter	62.5 µm
Operating Temperature	14 to 158° F (-10 to +70° C)
Optimized Data Rate	850 nm: 1 Gbps over 300 m; 1300 nm: 1 Gbps over 550 m
Standards	ISO/IEC 11801: Type OM1 fiber; IEC 60793-2-10: Type A1b fiber; TIA/EIA: 492AAAA-A

Attenuation	850 nm: = 2.9 dB/km; 1300 nm: = 0.6 dB/km
Bandwidth	Intermediate performance EMB: 850 nm: 220 MHz/km; Legacy performance EMB: 850 nm: 200 MHz/km; 1300 nm: 500 MHz/km
Cladding Diameter	125 µm
Core Diameter	62.5 µm
Operating Temperature	14 to 158° F (-10 to +70° C)
Optimized Data Rate	850 nm: 1 Gbps over 300 m; 1300 nm: 1 Gbps over 550 m
Standards	ISO/IEC 11801: Type OM1 fiber; IEC 60793-2-10: Type A1b fiber; TIA/EIA: 492AAAA-A

Note: Please read description carefully. Do not base your order on the picture presented.
