Options and Related Products

Working Load Limit:: Working Load Limit: 55000 kg

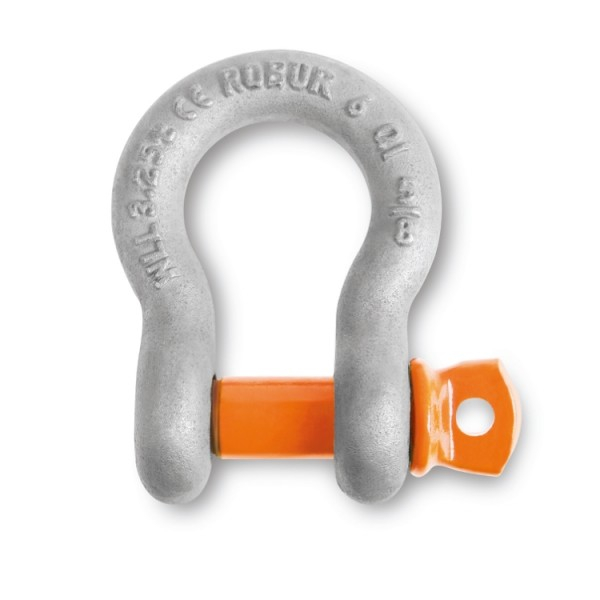

Beta Tools, 080290165, 8029R Bow Shackles with Screw Collar Pins, High-tensile Alloy Steel, GRADE 6, Hot-dipped Galvanized Body

Features:

Minimum Safety factor: 6
Heat treatment: hardening and tempering
Laboratory tests
Chemical analysis
Metallographic analysis
Tensile test
Fatigue test (min. 20,000 cycles)
Proof load test (2 x WLL)
Technical Product Specifications
Test Report UNI EN10204 type 2.2
Inspection Certificate UNI EN10204 type 3.1
CE Declaration of Conformity

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

ØD in.	2.3/4"
ØA in.	2.1/2"
B mm.	260
C mm.	180
∅E mm.	145
F1	310
H mm.	105
G mm.	344
WLL kg	55000

Product Details

ØD in.	2.3/4"
ØA in.	2.1/2"
B mm.	260
C mm.	180
∅E mm.	145
F1	310
H mm.	105
G mm.	344
WLL kg	55000

Note: Please read description carefully. Do not base your order on the picture presented.
