Allegro Industries 9525-50EXE 20" Axial Explosion-Proof Output Blower

PRM: 2875/3450
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

Options and Related Products

PRM:
PRM: 2875/3450

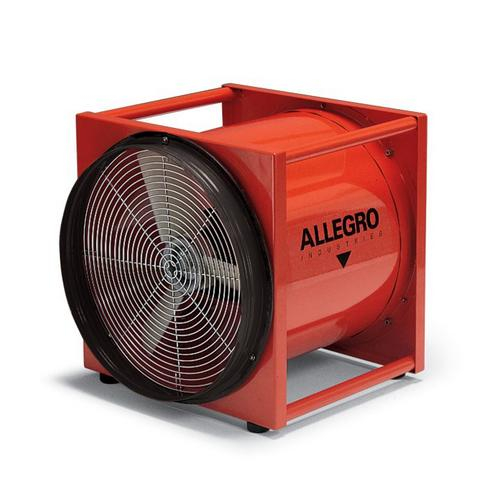

9525-50EXE, 20" Axial Explosion-Proof (EX) High Output Metal Blower, 230V, 50/60 Hz

Designed for applications requiring a maximum amount of output. Made from 16 gauge cold rolled steel housing and powder-coated in safety orange with 3 blade impeller. Powered by a 1-1/2 hp, 3450 RPM UL listed, IECEx/ATEX/INMETRO certified motor. Comes with an interchangeable flange for intake or exhaust mounting, integrated carry handles for easy transport and a steel/zinc plated grill. Four rubber feet, built in on/off switch, voltage change switch and stackable chassis are added features of this powerhouse unit.

Features:

  • Complete unit epoxy powder-coated in orange
  • Interchangeable flange for intake or exhaust side mounting
  • 16 gauge cold rolled steel housing
  • Integrated carry handles
  • Steel grill (zinc plated), equipped with four rubber feet
  • Built-in “on/off” switch Duct grounding lug

Fun:

  • Anti-Static glass reinforced polyamide (PAGAS) three blade fan with aluminum hub
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Resources
Reviews
Motor
HP1-1/2 HP
CertificationsUL Listed, IECEx/ATEX/INMETRO Certified
Voltage/Hz115/230V AC, 50/60 Hz, Single Phase (Integrated voltage selector)
Max RPM2875/3450
Current Draw15.5/7.8A (60 Hz), 19.3/9.6 (50 Hz)
Cord25’ (7.63m) 12/3 AWG MTW 90C 600V
PlugNEMA 20 Amp, 115V or 200V plug, Explosion Proof rated
ProtectionThermal, Automatic Rese
PlugNot supplied
Blower Dimenison
Length In. (cm)19" (48.2 cm)
Width In. (cm)22" (55.8 cm)
Height In. (cm22-1/2" (57.1 cm)
Weight Lbs. (Kg)71 lbs (32.2 kg)
Flow Rates (CFM calculated using 15’ (4.57m) of 20” (50.8cm) ducting)). Air flow determined at 60Hz
Free Air CFM (m3/hr)6837 (11622.90)
One 90° Bend CFM (m3/hr)5268 (8950.38)
Two 90° Bends CFM (m3/hr)4829 (8209.30)
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Motor
HP1-1/2 HP
CertificationsUL Listed, IECEx/ATEX/INMETRO Certified
Voltage/Hz115/230V AC, 50/60 Hz, Single Phase (Integrated voltage selector)
Max RPM2875/3450
Current Draw15.5/7.8A (60 Hz), 19.3/9.6 (50 Hz)
Cord25’ (7.63m) 12/3 AWG MTW 90C 600V
PlugNEMA 20 Amp, 115V or 200V plug, Explosion Proof rated
ProtectionThermal, Automatic Rese
PlugNot supplied
Blower Dimenison
Length In. (cm)19" (48.2 cm)
Width In. (cm)22" (55.8 cm)
Height In. (cm22-1/2" (57.1 cm)
Weight Lbs. (Kg)71 lbs (32.2 kg)
Flow Rates (CFM calculated using 15’ (4.57m) of 20” (50.8cm) ducting)). Air flow determined at 60Hz
Free Air CFM (m3/hr)6837 (11622.90)
One 90° Bend CFM (m3/hr)5268 (8950.38)
Two 90° Bends CFM (m3/hr)4829 (8209.30)
