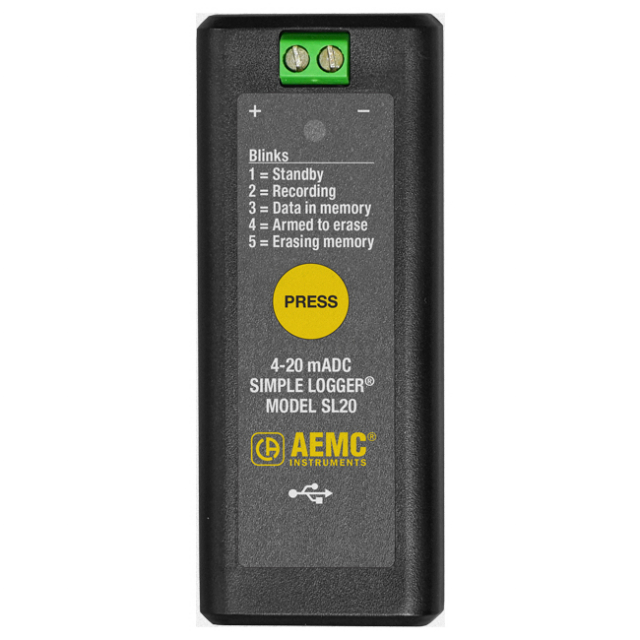

Buy AEMC 2156.20, SL20 Simple Logger, Current, 4 to 20 m ADC

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Features:

Scaling - includes settings that determine how the recorded data “scales” to units of measure:
- Low - defines the value when the instrument measures its lowest-energy input.
- High - defines the value when the instrument measures its highest input.
- Units - defines the units of measure. If you leave this setting blank, the instrument's default unit of measure is used.
The Filter setting defines a sliding "window" of measurements over which each reading is averaged. This helps smooth the graph and reduce the effects of electrical noise.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reference Conditions
Temperature	73 ± 3.6°F (23 ± 2°C)
Relative humidity	45% to 75%
Battery voltage	3V ± 10%
Physical
Dimensions	2.6 x 1.6 x 1.1" (66 x 40.6 x 28mm)
Weight (with batteries)	2.1 oz. (59 grams)
Case	UL94 HB
Vibration	IEC 68-2-6 (1.5mm, 10 to 55Hz)
Shock	IEC 68-2-27 (30G)
Drop	IEC 68-2-32 (3’ [1m] in the most severe position without permanent mechanical damage or functional impairment)
Operating position	Any position
Electrical
Range	±20mA
Resolution	0.02mA
Accuracy	±(0.5% of reading + 0.1mA)
Maximum input voltage	3VDC
Power source	Internal: Two 1.5V AAA non-rechargeable batteries External: USB 2.0 (computer or other power source)
Power consumption	Internal power: 0.1mA (average) External power: 100mW
Data Storage
Sample rate	16/s
Storage rate	1s
Storage mode	Stop when full
Recording length	Up to 45 days
Memory	8MB flash memory 4 million measurements (2 million for SL50)
Environmental
Operating temperature	14° to 122°F (-10° to 50°C)
Storage temperature	-4° to 140°F (-20° to 60°C)
Relative humidity	Up to 85% at 95°F (35°C), Non-condensing
Altitude	6500’ (2000m)
Emissions	Complies with IEC 61326-1:Ed1 and IEC 61326-2-2:Ed1 for class A equipment.
Immunity	Complies with IEC 61326-1:Ed1 and IEC 61326-2-2:Ed1. Immunity test requirements are for equipment intended for use in industrial locations as defined in Table 2 of IEC 61326-1:Ed1.

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Reference Conditions
Temperature	73 ± 3.6°F (23 ± 2°C)
Relative humidity	45% to 75%
Battery voltage	3V ± 10%
Physical
Dimensions	2.6 x 1.6 x 1.1" (66 x 40.6 x 28mm)
Weight (with batteries)	2.1 oz. (59 grams)
Case	UL94 HB
Vibration	IEC 68-2-6 (1.5mm, 10 to 55Hz)
Shock	IEC 68-2-27 (30G)
Drop	IEC 68-2-32 (3’ [1m] in the most severe position without permanent mechanical damage or functional impairment)
Operating position	Any position
Electrical
Range	±20mA
Resolution	0.02mA
Accuracy	±(0.5% of reading + 0.1mA)
Maximum input voltage	3VDC
Power source	Internal: Two 1.5V AAA non-rechargeable batteries External: USB 2.0 (computer or other power source)
Power consumption	Internal power: 0.1mA (average) External power: 100mW
Data Storage
Sample rate	16/s
Storage rate	1s
Storage mode	Stop when full
Recording length	Up to 45 days
Memory	8MB flash memory 4 million measurements (2 million for SL50)
Environmental
Operating temperature	14° to 122°F (-10° to 50°C)
Storage temperature	-4° to 140°F (-20° to 60°C)
Relative humidity	Up to 85% at 95°F (35°C), Non-condensing
Altitude	6500’ (2000m)
Emissions	Complies with IEC 61326-1:Ed1 and IEC 61326-2-2:Ed1 for class A equipment.
Immunity	Complies with IEC 61326-1:Ed1 and IEC 61326-2-2:Ed1. Immunity test requirements are for equipment intended for use in industrial locations as defined in Table 2 of IEC 61326-1:Ed1.

Note: Please read description carefully. Do not base your order on the picture presented.
