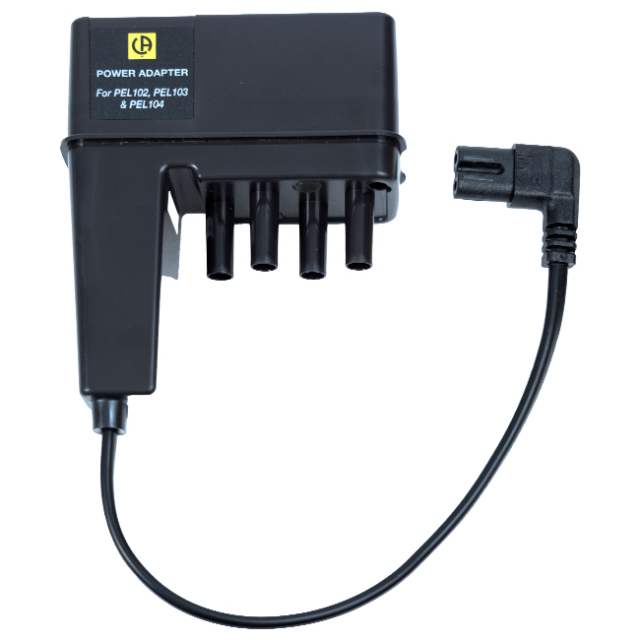

AEMC, 2137.90, Adapter - 600 V CATIII Power to Phase Adapter for use with Models PEL 102 & PEL 103

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Electrical Characteristics

Range of use

Phase-to-neutral voltage: (100 to 346) V_AC
Phase-to-phase voltage: (100 to 600) V_AC

Max. input voltage

Permanent: +10% (660 V_AC)
Transient: +15% (690 V_AC)

Min. input voltage

85 V_AC(-15%)

Max. output voltage

360 Vpeak

Frequency

(50, 60 and 400) Hz

Consumption

100 VA max at (50, 60, and 400)Hz

Environmental conditions

Reference range:

(73 to 37) °F (23 ± 3)°C and (45 to 75) % RH

Operation range:

(32 to 122 ) °F (0 to 50)°C and (10 to 85) % RH

Storage range:

(-4 to 158) °F (-20 to +70)°C and (0 to 95) % RH

Indoor use:

Level of pollution: 2; IEC 61010-1 600 V CAT III

Altitude:

< 2,000 m

Storage:

< 10,000 m

Characteristics of construction

Dimensions (L x H x D):

(5 x 3.8 x 1.5) in (121 x 97 x 39) mm

Mass:

~7oz (200 g)

Spiral cord:

~11 in (30 cm)

Ingress protection:

IP 40 per IEC 60529 except for the terminals (IP 20)
IK 04 per IEC 50102

Drop Test:

1 metre per IEC 61010-1

Electromagnetic compatibility

Dimensions (L x H x D):

Emissions and immunity in an industrial setting compliant with IEC 61326-1

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Electrical Characteristics

Range of use

Phase-to-neutral voltage: (100 to 346) V_AC
Phase-to-phase voltage: (100 to 600) V_AC

Max. input voltage

Permanent: +10% (660 V_AC)
Transient: +15% (690 V_AC)

Min. input voltage

85 V_AC(-15%)

Max. output voltage

360 Vpeak

Frequency

(50, 60 and 400) Hz

Consumption

100 VA max at (50, 60, and 400)Hz

Environmental conditions

Reference range:

(73 to 37) °F (23 ± 3)°C and (45 to 75) % RH

Operation range:

(32 to 122 ) °F (0 to 50)°C and (10 to 85) % RH

Storage range:

(-4 to 158) °F (-20 to +70)°C and (0 to 95) % RH

Indoor use:

Level of pollution: 2; IEC 61010-1 600 V CAT III

Altitude:

< 2,000 m

Storage:

< 10,000 m

Characteristics of construction

Dimensions (L x H x D):

(5 x 3.8 x 1.5) in (121 x 97 x 39) mm

Mass:

~7oz (200 g)

Spiral cord:

~11 in (30 cm)

Ingress protection:

IP 40 per IEC 60529 except for the terminals (IP 20)
IK 04 per IEC 50102

Drop Test:

1 metre per IEC 61010-1

Electromagnetic compatibility

Dimensions (L x H x D):

Emissions and immunity in an industrial setting compliant with IEC 61326-1

Note

Note: Please read description carefully. Do not base your order on the picture presented.
