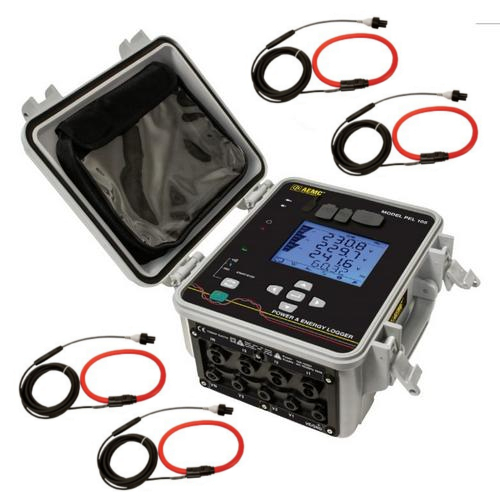

AEMC, 2137.59, PEL 105 Power and Energy Logger w/ four 196A-24-BK AmpFlex Sensors

AEMC's Model PEL 105 is a simple to use, power and energy data logger that monitors both traditional and renewable energy sources. It monitors and records power, energy, cost and harmonics locally or from anywhere in the world. The PEL 105 is built into a waterproof case with an IP67 rating designed for outdoor use and is ideal for pole mounting. This product is perfect for electricians, engineers and contractors doing work in the areas of building and system monitoring and upgrades, including compliance to article 220.87 of the NEC, as well as overall energy audits and incoming power monitoring. It is available with an Android™ App to configure, view and capture data wirelessly. Bluetooth and Wi-Fi wireless communication provides the operator with the ability to work from a safe distance away from dangerous voltages and currents without the need to wear PPE gear.

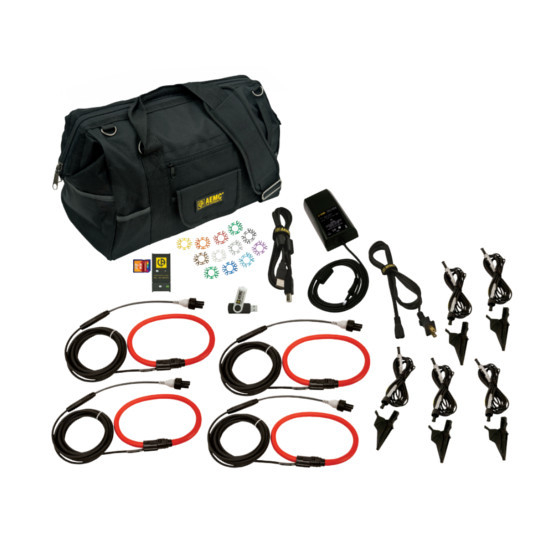

Includes:

Extra-large tool bag, accessory pouch
5 ft USB cable
five 10 ft. black voltage leads
(waterproof cap) with alligator clips
power adapter 110/230V with US power cord
(included with Cat #2137.59 only)
9.6V NiMH battery
12 color-coded input ID markers,
SD-card (8GB)
USB SD-card reader
quick start user guide
USB stick supplied with DataView ® software and user manual.
Four 196A-24-BK AmpFlex Sensors (Waterproof IP67)

Features

Waterproof IP67 rated including the current sensors
5 voltage and 4 current measurement inputs
Measures volts, amps, watts, VARs, kWh, power factor and harmonics out to the 50th
Track energy costs including time of use
Wi-Fi, Bluetooth Class 1, USB, LAN and Ethernet communication built in
Powered from phase inputs up to 1000VAC or from a wall receptacle
User selectable storage rates and demand intervals
Pole mountable
Can be configured directly from the front panel, through the DataView® control panel or the free Android App
Satisfies the recommendations of NEC 220.87
Minimal programming required
Automatic recognition of the connected current sensors/probes
1000V CAT IV
DataView® software for data storage, real-time display, analysis and report generation

Applications

Measures efficiency and finds areas for potential savings
Assign energy costs to departments or operations
Track peak demand periods and find opportunities for surcharge reductions
Determine present capacity and circumvent unnecessary electrical expansion costs
Verify the reliability and operation of electrical machinery
Improve response time to solve power related problems
Track energy availability and reliability of supply
Baseline studies for system upgrades in high-rise and office buildings

See less

Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

Resources

Reviews

GENERAL
Sampling Frequency	128 samples per cycle; 50/60Hz (16 samples/cycle 400Hz)
Data Storage Rate	1 per second (200ms also available on PEL 105)
Demand Period Storage Rate	User selectable (1, 2, 3, 4, 5, 6, 10, 12, 15, 20, 30 and 60 minutes)
Recorded Parameters (Single- and Poly-Phase)	V, I, W, VA, var, PF, Tan, Wh, VAh, varh, THD (V and I), Individual harmonics (from 1 through 50 per phase); Crest Factor (CF), Cos f / DPF
Event Log	Tracks and records status changes and error messages along with recorded data
Front Panel Indicator LEDs	Bluetooth active, recording in progress, phase connection reversal, overload, battery charging and SD Card status
Storage Capacity	SD card included / SD cards up to 32 GB formatted FAT32 are supported
Inputs Voltage	PEL 102/103: 4 input channels; PEL 105: 5 input channels via 4mm safety banana jacks
Current	PEL 102/103: 3 current input channels ; PEL 105: 4 input channels via custom 4 pin jacks that accept AEMC probes and sensors
ELECTRICAL
VOLTAGE MEASUREMENT	PEL 105 RANGE
50/60Hz	42.5 to 69Hz
Single-Phase RMS Voltages	10 to 1000Vrms
Phase-to-Phase RMS Voltages	17 to 1000Vrms
400Hz	340 to 460Hz
Single-Phase RMS Voltages	10 to 600Vrms
Phase-to-Phase RMS Voltages	17 to 600V
DC	10 to 1000V
PT Ratios	-
CURRENT MEASUREMENT	196A***
Nominal range for current probes supplied with kit. See chart on pg 11 for other probes	200mA to 10,000A
CT Ratios	Programmable from 1:1 to 25,000:1 (probe dependent)
POWER MEASUREMENTS	RESOLUTION
*Active Power (P) E= 10^18**	0.001W
Reactive Power (Q)*	0.001var
Apparent Power (S)*	0.001VA
Power Factor	0.001
Tangent φ (active/reactive power ratio)	0.001
ENERGY MEASUREMENTS
Active Energy (EP)	1Wh
Reactive Energy (EQ)	1varh
Apparent Energy (ES)	1Vah
THD	± 655%
Individual Harmonics	1 to 50 displayed in percentage; 1 to 7 at 400Hz
External Supply	110V/250V (10%) @ 50/60Hz; 400Hz
Power From Phase Measurement	PEL 102/103: requires optional Power Adapter Cat #2137.77; PEL 105: 100V to 1000V ac
Back-Up Power Source/Charge Time	Rechargeable 8.4V NiMH battery pack / Approximately 5 hours
Battery Life	30 minutes minimum, 60 minutes typical
MECHANICAL
Communication Ports	USB 2.0, Ethernet (RJ45), Wireless Bluetooth Class 1 **/ PEL 105 only: Wi-Fi
Dimension/Weight	PEL 105: 10.6 x 7.1 x 9.65" (270 x 180 x 245mm) / 8.8lbs (4kg)
Case	PEL 105: Polycarbonate UL94 V1 rated
DISPLAY
Display Type	PEL 105: 4.2 x 3.3" (107 x 84mm), four line, monochrome, backlit LCD with adjustable brightness & contrast
ENVIRONMENTAL / SAFETY
Operating Temperature/Relative Humidity	EL 105: -4° to 122°F (-20° to 50°C) / 45 to 75%RH
Storage Temperature	PEL 105: -40° to 95°F (-40° to 35°C from 0 to 95%HR); -40° to 158°F (-40° to 70°C from 0 to 75%HR)
Safety Rating / CE Rating	PEL 105: 1000V CAT IV, Pollution Degree 4 (closed) / Yes
Index of Protection	PEL 105: IP67 with cover closed
* Maximum value is current probe dependent
