Buy ADC 9005BPSM, Adview2 Diagnostic Station, BP/SpO2 Masimo Set

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Temperature Module:: Temperature Module: Yes

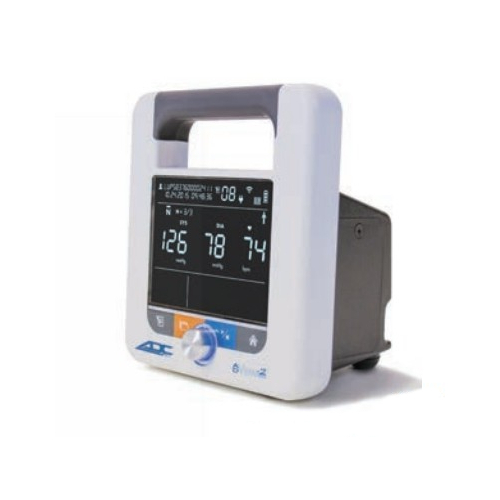

Adview2 Diagnostic Station, Blood Pressure & SpO2 Masimo Set

Includes:

Rechargeable lithium-ion battery
U.S. power cord
10-foot length of tubing
Adult Plus and Large Adult Plus cuffs
Mini-USB to USB cable
Quick Start Guide
Quick Reference Guide
Adult finger sensor and 8-foot extension cable.

Features:

Clinical-grade Advantage™ BP technology from SunTech Medical
Contemporary, compact design with an integrated handle and easy-to-read display
Manual blood pressure mode for real-time verification
Customizable average mode options
Next-generation EMR ready with HL7 messaging for electronic data transfer
Network enabled with built-in Ethernet or optional Wi-Fi
Lithium-ion power for longer-lasting battery life and a lighter weight
Built-in memory with up to 99 charting sessions
New Pediatric Mode to ensure accurate measurements for younger patients
Firmware upgradeable

The ADView 2 is still the only truly modular diagnostic station that grows with your needs. We’ll ship your ADView 2 fully configured and ready to go. User-expandable, connect-and-go construction makes upgrading effortless.

It All Begins with Blood Pressure

The ADC ADView 2 easily captures automated blood pressure measurements at the touch of a button. Non-invasive blood pressure base unit module uses the oscillometric method, with both pulse rate and the mean arterial blood pressure (MAP*) displayed in about 30 seconds. With seven available cuff sizes, ranging from child to thigh, the ADView 2 can be used for patients ages three and older. Adult Plus and Large Adult Plus cuffs come standard.

*Not validated for use in the U.S

Manual mode option for added versatility

Our original ADView was the first diagnostic station to offer a manual mode. It was an innovation developed even earlier for our e-sphyg II, allowing you to capture blood pressure with your stethoscope using the traditional auscultatory method without changing cuffs. Manual mode provides important versatility for your patients with arrhythmias or other complex needs.

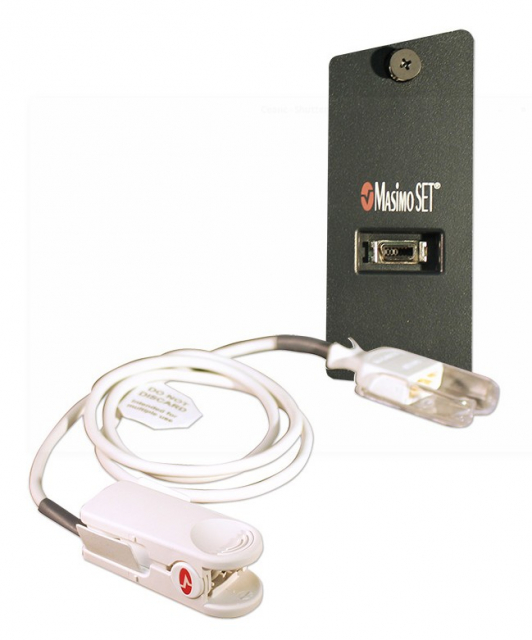

Pulse Oximetry Module

The Masimo-compatible SpO2 module displays pulse rate signal strength during measurement.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

Reviews

General Specifications
Conditions for Use:	Operating: 10°C (50°F) to 40°C (104°F) 15 - 90% RH non-condensing - 700 kPa - 1060 kPa. Operating the monitor in an environment at maximum temperature can produce temperatures exceeding 41°C (41.6°C highest recorded) on a patient-applied part.It is up to the operator to determine if this temperature is too high based upon the condition of the patient and, if so, to ensure the ambient temperature of the environment is 38°C or below.
Storage:	-20°C (-4°F) to 55°C (149°F) 15 - 90% RH non-condensing - 500 kPa - 1060 kPa. Performance can be affected if used or stored outside the specified temperature, humidity, or altitude listed in the ranges above.
Power:	Internal power supply. Input: 100-240 VAC at 1.5A max, 50-60 Hz. Output +9VDC at 5A IEC 320 type input connector.
Battery:	Type: 7.2v, 6600mAh Internal Lithium-Ion battery Run Time (full charge): ~20 hrs* / 200 BP cycles Charge Time: ~6 hrs at 23deg Celsius +/- 2deg*Unit with BP, Temp, SpO2, Wi-Fi, barcode scanner
Calibration:	The accuracy of cuff -pressure transducers/indicators should be verified bi-annually.
Safety Systems:	Independent hardware over-pressure circuit and redundant software overpressure algorithm to limit cuff pressure to less than 300 mmHg (+20/-10mmHg). Independent hardware timing circuit and redundant software timer algorithm to limit the duration of a blood pressure cycle to less than 180 seconds.
Dimensions:	Size (without thermometer option): 8" H x 6.75" W x 5.2" D or 215mm H x 190mm W x 140mm D
Standards:	ANSI/AAMI ES60601-1:2005/(R)2012 and A1:2012, C1:2009/(R)2012 and A2:2010/(R)2012, EN 60601-1:2006/A1:2013, IEC 60601-1-2: 2007 EMC, IEC 80601-2-30: 2013, ISO 80601-2-61: 2011, ISO 15223-1:2012, ISO 10993-1, 2009, ISO 10993-5, 2009, EN ISO 10993-10, 2010, ISO 81060-2:2013, EN 50419: 2006, EN ISO 14971:2009, CSA C22.2 No. 60601-1, EN ISO 81060-1: 2012, IEC 60601-1-6: 2013
Classifications:	Equipment Classification: Class IIa per MDD, Class I (Electrical Shock), Continuous mode of operation, CE
Ingress of liquid:	Ingress Protection: IPX1: This device is protected against harmful effects of dripping water per IEC 60529.
Blood Pressure
Range:	Pressure: Diastolic: 20-200 mmHg (adult), 20-160 mmHg (pediatric). Systolic: 40-260 mmHg (adult), 40-230 mmHg (pediatric) Heart Rate: 30-220 BPM (beats per minute)
Accuracy (BP):	Meets or exceeds ANSI/AAMI/ISO 81060-2:2013 standard for non-invasive accuracy (±5mmHg mean error with 8mmHg standard deviation).

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

General Specifications
Conditions for Use:	Operating: 10°C (50°F) to 40°C (104°F) 15 - 90% RH non-condensing - 700 kPa - 1060 kPa. Operating the monitor in an environment at maximum temperature can produce temperatures exceeding 41°C (41.6°C highest recorded) on a patient-applied part.It is up to the operator to determine if this temperature is too high based upon the condition of the patient and, if so, to ensure the ambient temperature of the environment is 38°C or below.
Storage:	-20°C (-4°F) to 55°C (149°F) 15 - 90% RH non-condensing - 500 kPa - 1060 kPa. Performance can be affected if used or stored outside the specified temperature, humidity, or altitude listed in the ranges above.
Power:	Internal power supply. Input: 100-240 VAC at 1.5A max, 50-60 Hz. Output +9VDC at 5A IEC 320 type input connector.
Battery:	Type: 7.2v, 6600mAh Internal Lithium-Ion battery Run Time (full charge): ~20 hrs* / 200 BP cycles Charge Time: ~6 hrs at 23deg Celsius +/- 2deg*Unit with BP, Temp, SpO2, Wi-Fi, barcode scanner
Calibration:	The accuracy of cuff -pressure transducers/indicators should be verified bi-annually.
Safety Systems:	Independent hardware over-pressure circuit and redundant software overpressure algorithm to limit cuff pressure to less than 300 mmHg (+20/-10mmHg). Independent hardware timing circuit and redundant software timer algorithm to limit the duration of a blood pressure cycle to less than 180 seconds.
Dimensions:	Size (without thermometer option): 8" H x 6.75" W x 5.2" D or 215mm H x 190mm W x 140mm D
Standards:	ANSI/AAMI ES60601-1:2005/(R)2012 and A1:2012, C1:2009/(R)2012 and A2:2010/(R)2012, EN 60601-1:2006/A1:2013, IEC 60601-1-2: 2007 EMC, IEC 80601-2-30: 2013, ISO 80601-2-61: 2011, ISO 15223-1:2012, ISO 10993-1, 2009, ISO 10993-5, 2009, EN ISO 10993-10, 2010, ISO 81060-2:2013, EN 50419: 2006, EN ISO 14971:2009, CSA C22.2 No. 60601-1, EN ISO 81060-1: 2012, IEC 60601-1-6: 2013
Classifications:	Equipment Classification: Class IIa per MDD, Class I (Electrical Shock), Continuous mode of operation, CE
Ingress of liquid:	Ingress Protection: IPX1: This device is protected against harmful effects of dripping water per IEC 60529.
Blood Pressure
Range:	Pressure: Diastolic: 20-200 mmHg (adult), 20-160 mmHg (pediatric). Systolic: 40-260 mmHg (adult), 40-230 mmHg (pediatric) Heart Rate: 30-220 BPM (beats per minute)
Accuracy (BP):	Meets or exceeds ANSI/AAMI/ISO 81060-2:2013 standard for non-invasive accuracy (±5mmHg mean error with 8mmHg standard deviation).
