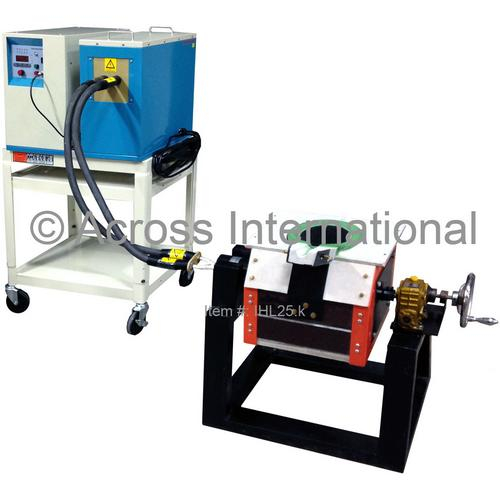

Across IHL25K 25 kW Low-Frequency Induction Melting Furnace 1-20 kHz

25 kW Low-Frequency Induction Melting Furnace 1-20 kHz

Features:

• Ease of use: just plug in the power and connect the cooling system. Our simple instruction allows you to use the heater in 15 minutes.
• Digital output, frequency and current displays.
• Dual automatic and manual modes.
• Comes with one graphite or silica crucible. Additional crucibles available at extra cost. (melting material decides crucible type, weight and size of the material decide crucible size)
• ISO 9001:2008 registered manufacturer.

Safety:

• Overvoltage protection : machine shuts down when input voltage is over 495V. Overvoltage light will turn on and buzzer will sound continuously. Alarm and light shut off automatically when voltage goes below 495V.
• Overheat protection : if sensor detects heat radiator temperature is over 55°C, machine will shut down, overheat light will turn on and buzzer will sound continuously. Increase water pressure or lower water temperature until alarm goes off itself.
• Overcurrent/malfunction protections : machine will shut down, indicator light turned on and buzzer sounds continuously if one of these situations occurs:
  • One of the machine parts becomes overheated
  • Interfering signal detected
  • Short circuit between workpieces and induction coils
  • Machine malfunctions
  • Induction coils touching each other
  • Input voltage is too low
• Low water pressure protection : if water pressure goes below 29 PSI, machine will shut down, water protection light will turn on and buzzer will sound continuously.

Includes:

• IHL25K power supply and capacitor (1 Set)
• Tilt-pour melter with one removeable graphite or silica crucible (1 Set)
• Power cable btw power supply & capacitor (1 pc), Temp cable btw power supply & capacitor (1 pc), Water cooled cable btw capacitor & melter (2 pcs)
• Remote on/off switch (1 pc)
• Water cooling fitting (1 Set)
• Stainless steel hose clamp (1 Set)
• Fuse (1 Set)
• Operation manual (1 pc)
