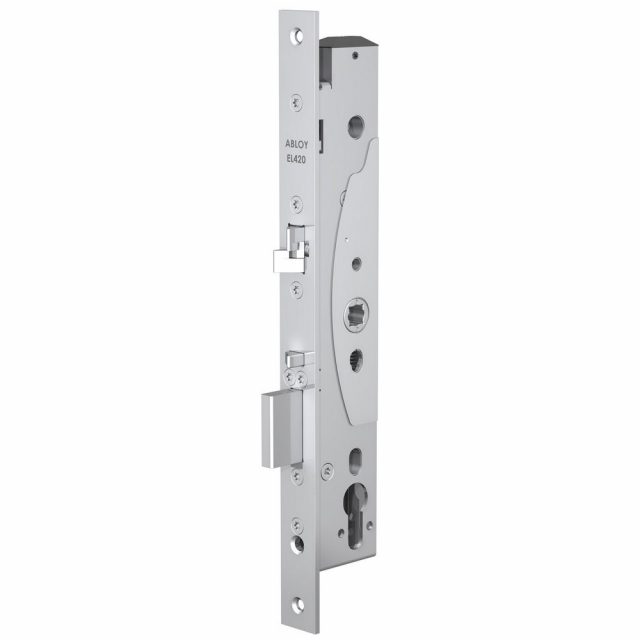

Abloy, EL420, High Security DIN Standard Electric Motor Lock for Narrow Profile Doors

Features:

EL420 is a motor lock used in narrow profile doors. Motor locks are best suited in high-traffic doors.
The locks can be electrically controlled by an access control system or by a remote control system such as a timer, keypad, or push button.
The locks can be used both in exit and fire-rated doors (EN).

Applications:

It is recommended to be used in high-traffic doors of public buildings, business premises, hospitals, educational premises, shopping centers, and sports stadiums.

For more information, please see Data Sheet

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Handing	Reversible handing, lef/right
Exit Function	Yes
Mechanical Cylinder Override	Yes
Latch	Double action latch
Dead Bolt	Yes, 20mm
Input Operating Voltage	12-24 VDC/12-18 VAC
Rated Current Consumption	12 VDC idle 80mA, normal drive 450mA, max. 1300mA/24 VDC idle 40mA, normal drive 220mA, max. 600mA
Relay Capacity (Monitoring Contacts)	Max. 0.8 A 30 V AC/DC resist. 20 W
Suitable for Fire Doors	Yes

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Handing	Reversible handing, lef/right
Exit Function	Yes
Mechanical Cylinder Override	Yes
Latch	Double action latch
Dead Bolt	Yes, 20mm
Input Operating Voltage	12-24 VDC/12-18 VAC
Rated Current Consumption	12 VDC idle 80mA, normal drive 450mA, max. 1300mA/24 VDC idle 40mA, normal drive 220mA, max. 600mA
Relay Capacity (Monitoring Contacts)	Max. 0.8 A 30 V AC/DC resist. 20 W
Suitable for Fire Doors	Yes

Note: Please read description carefully. Do not base your order on the picture presented.
