Buy A&D Weighing SW-30KM, SW Series 66lb Washdown Scale w/NTEP Certificate

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

NTEP Approved
This item meets all government standards and requirements as set by the National Institute of Standards and Technology for scales and other weighing equipment.

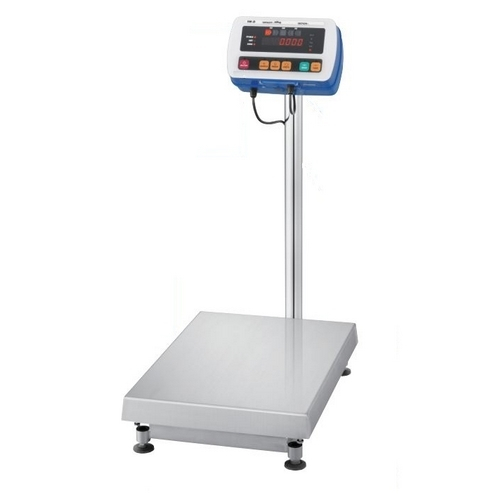

SW Series 66lb High Pressure Washdown Scale with NTEP Certification

SW Super Washdown Bench Scales are designed to withstand the most demanding process conditions and high pressure, high temperature cleaning. With a superior IP69K rating (1450 PSI, 175°F), stainless steel frame, load cell and weigh pan, SW bench scales are ideal for food processing applications and extremely damp locations where cleanliness and sanitation are critical. Weighing modes include parts counting and comparator function for checkweighing applications. Weighs in lb, kg, oz, g, lb-oz with easily switchable units.

Features:

IP69K rated for the ultimate in dust, water and condensation protection
Bright high visibility multicolored LED display with comparator display built-in
Adjustable sensitivity keys allow light touch and are puncture resistant
Stainless steel column that mounts on short or long side of base

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

Resources

Reviews

lb	Capacity	66
	Min. Display	0.02 0.01* 0.005
oz	Capacity	1050
	Min. Display	0.5 0.2* 0.1
kg	Capacity	30
	Min. Display	0.01 0.005* 0.002
g	Capacity	30000
	Min. Display	10 5* 2
lb-oz	Capacity	66
	Min. Display	0.1
Number of samples		5 (can be changed to 10, 20, 50 or 100) pieces
Maximum count		150,000 pcs
Minimum unit weight		0.2 g
Repeatability (Std. deviation)		0.01 lb
Linearity		±0.02 lb
Sensitivity drift		±20 ppm / °C (5°C to 35°C / 41°F to 95°F)
Display		7 segment LED display (character height 14.6 mm) Comparator light, Red/Yellow/Green/Yellow/Red LED
Display update		10 times per second
Operating conditions		-10°C to 40°C / 14°F to 104°F, 85% R.H. or less (non-condensing)
Power supply		AC main (100V~240V) or SLA Battery (option), Approximately 90 hours operation
Weighing pan size		300 x 380 mm / 11.8 x 15.0 in.
Calibration weight		30 kg / 60 lb
Weight		13.0 kg / 28.7 lb
Dimensions		390(W) x 751(D) x 722.5(H) mm 11.8(W) x 23.7(D) x 28.4(H) in.
