A&D Weighing SW-150KL SW Series 330lb Washdown Scale with NTEP

Weighing Pan Size: 15.4 x 20.9 in., Capacity: 330 lb
  • Brand A&D Weighing
  • Part # SW-150KL
  • Model # SW Series
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

Options and Related Products

Weighing Pan Size:
Weighing Pan Size: 15.4 x 20.9 in.
Capacity:
Capacity: 330 lb
image16NTEP Approved
This item meets all government standards and requirements as set by the National Institute of Standards and Technology for scales and other weighing equipment.

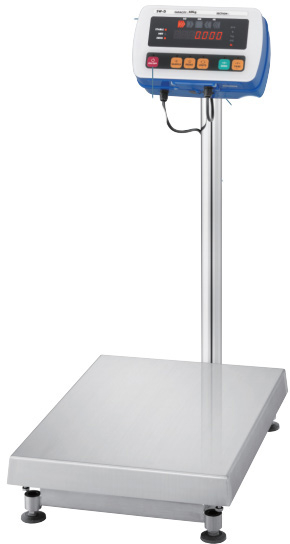

SW Series High Pressure Washdown Scale, 330lb x 0.1lb Capacity with NTEP Certification

SW Super Washdown Bench Scales are designed to withstand the most demanding process conditions and high pressure, high temperature cleaning. With a superior IP69K rating (1450 PSI, 175°F), stainless steel frame, load cell and weigh pan, SW bench scales are ideal for food processing applications and extremely damp locations where cleanliness and sanitation are critical. Weighing modes include parts counting and comparator function for checkweighing applications. Weighs in lb, kg, oz, g, lb-oz with easily switchable units.

Features:

  • IP69K rated for the ultimate in dust, water and condensation protection
  • Bright high visibility multicolored LED display with comparator display built-in
  • Adjustable sensitivity keys allow light touch and are puncture resistant
  • Stainless steel column that mounts on short or long side of base

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Optional Accessories
Reviews
lbCapacity330
Min. display

0.1

0.05 *
0.02
ozCapacity5200
Min. display2
1 *
0.5
kgCapacity150
Min. display0.05
0.02 *
0.01
lb- ozCapacity330
Min. display1
Number of samples5 (can be changed to 10, 20, 50 or 100) pieces
Maximum count150,000 pcs
Minimum unit weight0.1 g
Repeatability(Std. deviation)0.05 lb
Linearity±0.1 lb
Sensitivity drift±20 ppm / °C (5°C to 35°C / 41°F to 95°F)
DisplayDisplay of weight: 7 segment LED display (character height 14.6 mm) Comparator light, Red/Yellow/Green/Yellow/Red LED
Display update10 times per second
Operating conditions-10°C to 40°C / 14°F to 104°F, 85% R.H. or less (non- condensing)
Power supplyAC main (100V~240V) or SLA Battery (option), Approximately 90 hours operation
Weighing pan size390 x 530 mm / 15.4 x 20.9 in.
Dimensions390(W) x 751(D) x 722.5(H) mm
15.4(W) x 29.6(D) x 28.4(H) in.
Weight (approximately)16.2 kg / 35.7 lb
Shipping Weight22.1 kg / 49 lb
Calibration weight150 kg
300 lb
Product Details
lbCapacity330
Min. display

0.1

0.05 *
0.02
ozCapacity5200
Min. display2
1 *
0.5
kgCapacity150
Min. display0.05
0.02 *
0.01
lb- ozCapacity330
Min. display1
Number of samples5 (can be changed to 10, 20, 50 or 100) pieces
Maximum count150,000 pcs
Minimum unit weight0.1 g
Repeatability(Std. deviation)0.05 lb
Linearity±0.1 lb
Sensitivity drift±20 ppm / °C (5°C to 35°C / 41°F to 95°F)
DisplayDisplay of weight: 7 segment LED display (character height 14.6 mm) Comparator light, Red/Yellow/Green/Yellow/Red LED
Display update10 times per second
Operating conditions-10°C to 40°C / 14°F to 104°F, 85% R.H. or less (non- condensing)
Power supplyAC main (100V~240V) or SLA Battery (option), Approximately 90 hours operation
Weighing pan size390 x 530 mm / 15.4 x 20.9 in.
Dimensions390(W) x 751(D) x 722.5(H) mm
15.4(W) x 29.6(D) x 28.4(H) in.
Weight (approximately)16.2 kg / 35.7 lb
Shipping Weight22.1 kg / 49 lb
Calibration weight150 kg
300 lb
