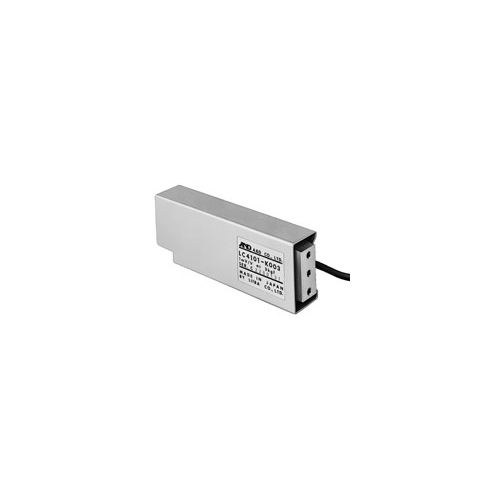

A&D Weighing, LC-4101-K015, LC-4101 Single Point Compact Load Cells 15kgf/ 30lb

For small capacity weighing applications,single point compact load cells

Features

Parallelogram-type construction
Temperature compensation maintains both zero and span from -10 °C to +40 °C/+14 °F to +104 °F
Deadweight up to 80% of capacity. Load weight and deadweight up to 180% of capacity
Moisture proof
Compact and lightweight

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Rated capacities	15 kgf
Rated output	1 mV/V+15/-0%
Maximum deadweight	80% of rated capacity
Maximum safe overload	300% of rated capacity
Combined error	±0.015% of rated output
Creep	±0.05% of rated output/hour
Zero balance	20±5% of rated output
Compensated temperature range	-10 °C to +40 °C/+14 °F to +104 °F
Recommended excitation voltage	12 V
Maximum excitation voltage	15 V
Input terminal resistance	Approximately 400 Ω
Output terminal resistance	350 Ω ± 5 Ω
Insulation resistance	Greater than 5000 MΩ at DC50 V
Temperature effect
Zero	0.004% of rated output/°C
Span	0.0014% of rated output/ Type.
Platform size	300 x 300 mm/11.8 x 11.8 inches
Cable length	1.5 m / 59 inches

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Rated capacities	15 kgf
Rated output	1 mV/V+15/-0%
Maximum deadweight	80% of rated capacity
Maximum safe overload	300% of rated capacity
Combined error	±0.015% of rated output
Creep	±0.05% of rated output/hour
Zero balance	20±5% of rated output
Compensated temperature range	-10 °C to +40 °C/+14 °F to +104 °F
Recommended excitation voltage	12 V
Maximum excitation voltage	15 V
Input terminal resistance	Approximately 400 Ω
Output terminal resistance	350 Ω ± 5 Ω
Insulation resistance	Greater than 5000 MΩ at DC50 V
Temperature effect
Zero	0.004% of rated output/°C
Span	0.0014% of rated output/ Type.
Platform size	300 x 300 mm/11.8 x 11.8 inches
Cable length	1.5 m / 59 inches

Note: Please read description carefully. Do not base your order on the picture presented.
