Analog unit |
Input sensitivity | Over 0.3µV/d (d=minimum division) |
Zero adjustment range | 0mV to 20mV (0mV/V to 2mV/V) |
Load cell excitation voltage | DC10V±5%, 230mA Remote sensing function included, Up to 8 x 350 Ohm load cells can be connected |
Temperature coefficients | Zero: ±(0.2µV+0.0008% of Dead Load) Typ. Span: ±0.0008% Typ. |
Nonlinearity | 0.01% of F.S |
Input noise | Less than 0.3µVp-p |
Maximum measurement voltage | 32mV (3.2mV/V) |
Input impedance | 10 MOhm and above |
A/D conversion method | Delta-sigma modulation |
A/D resolution | Approx. 1,000,000 |
Display resolution | 999,999d |
Sampling rate | 100 times per second |
Digital unit |
Display elements | VFD (Display: cobalt blue Status display: orange) |
Display Types |
Main display | 7 digit 7-segment display with 13mm characters. Switches between NET and GROSS Display Range 0-999999d (Minimum scale d can be 1, 2, 5, 10, 20 or 50) Units g, kg, t |
Sub display | 8 digit 7-segment display with 7mm characters. Gross, net, tare, final, accumulated weight, number of accumulations (One of the above can be selected) |
Status | Orange rectangle marks. ZERO, MD, GROSS, NET, HOLD, ALARM, FINAL, F.FALL, PRELIM, OP.PLM, OVER, UNDER, NEAR-ZERO (In weighing mode) |
External input/output |
Control I/O | 6 selectable output nodes (no-voltage contact point or open collector input) 8 selectable input nodes (open collector output) maximum load voltage: DC30V maximum load current: 50mA |
Standard serial output | 20mA current loop (for use with A&D peripheral devices) |
Setpoint | For Digital Switch and AD-4401-06 (setpoint unit) connection |
General specifications |
Power supply voltage | AC100 to 240V (50/60Hz |
Power consumption | Approx. 30VA |
Operating temperature | - 10°C to 40°C |
Operating humidity | 85% R.H. or less (No condensation) |

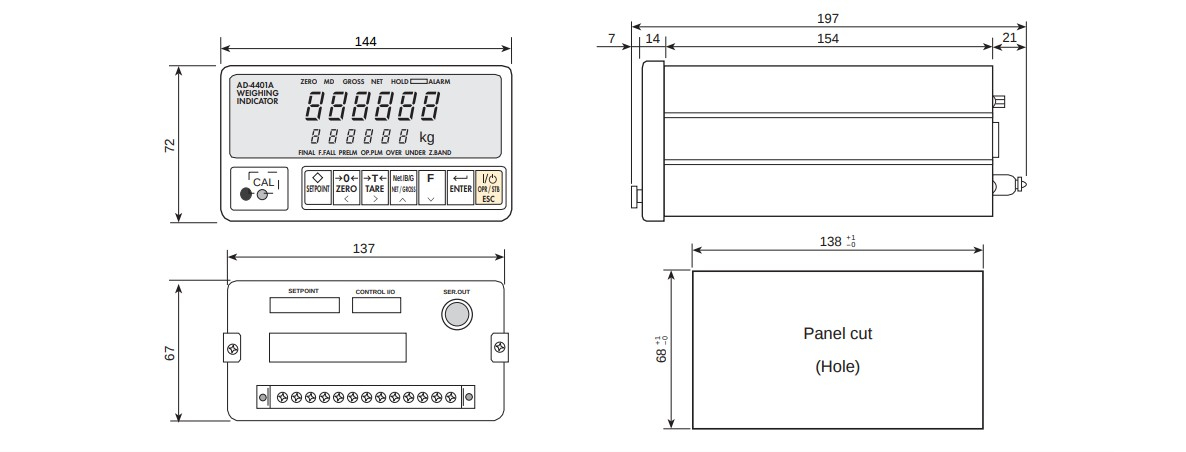

External dimensions | 144(W) - 72(H) - 197(D) mm |
Panel cut dimensions | 138 ° 68 mm |
Standard accessories | Simplified manual, control I/O connector, standard serial output connector, capacity plate, unit label, panel mount packing, terminal block cover, rubber pads |
|
