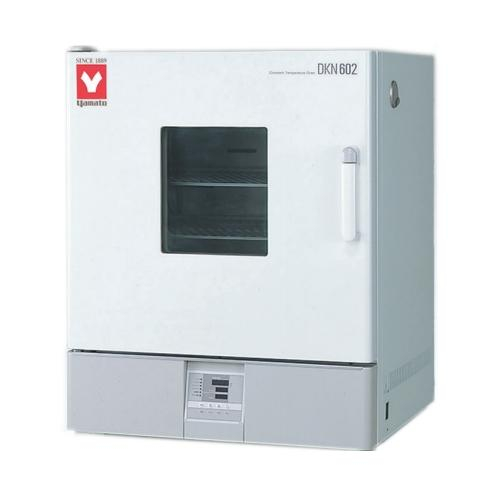

Yamato DKN-602C Forced Convection Oven, 150L, 115V

Power Supply: 115V, Internal capacity: 150L
  • Brand Yamato
  • Part # DKN-602C
  • Condition
    Brand New
Availability
Contact Us
Check Availability
Quantity
  • Due to excessive size and weight, shipping charges cannot be automatically calculated for this order.
Share:

Options and Related Products

Power Supply:
Power Supply: 115V
Internal capacity:
Internal capacity: 150L

Yamato, DKN-602C, Forced Convection Oven, 150L, 115V

Programmable forced convection constant temperature oven with extended functions and safety features

Performance and Functions

  • Based on excellent performance and affordability
  • Superior temperature accuracy
  • Come with observation window
  • Programmable PID controller for easy program settings (30-step, 3-pattern program controller with repeat functions)
  • Fixed setting, Quick Auto stop, Auto stop, Auto start, Program operating modes with easy control capabilities
  • Increased safety and self-diagnostic functions
  • Overheating prevention and calibration off-set are possible with auxiliary functions
  • Easy to use and maintain
  • Built in exhaust ports

Safety features

  • Self-diagnostic functions (Temperature sensor abnormal, Heater disconnection, SSR-short), Automatic overheating prevention, Electric leakage breaker with over current protection, Key lock function
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Resources
Reviews
Circulation MethodForced air circulation
Operating Temp. RangeRoom temp. +10°C to 250°C
Temp. Adjustment Accuracy±1°C (at 210°C)
Temp. Distribution Accuracy±2.5°C (at 210°C)
Max. Temp. Reaching TimeApprox. 90 min.
Interior/Exterior MaterialStainless steel / Cold rolled steel plate with melamine resin baking finish
Heat Insulating MaterialGlass wool
HeaterStainless pipe heater/1.5kW
Fan Type / Fan MotorScirocco fan, Condenser type motor 10W

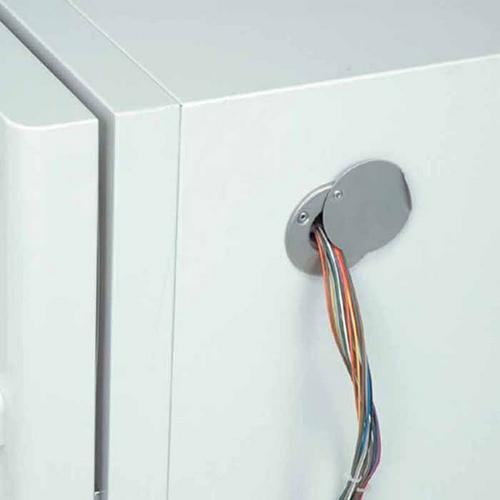

Cable Hole30mm I.D. (on the right side) 1pc.
Exhaust Port30mm I.D. x 2 (on top)
Observation Window250 x 280mm Chemical strengthening glassx3
Temp. Controller3 patterns program controller, PID control by microprocessor
Temp. Setting MethodDigital setting by up|down key
Temp. DisplayMeasurement temp. : Digital display by green LED / Setting temp. : Digital display by red LED
Timer1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs. 50 min. with timer wait function
Operation FunctionFixed temperature operation, Program operation, Auto start, Auto stop, Quick Auto-stop
Program ModeProgram operation : 3 patterns, 30 steps (30 stepsx1, 15 stepsx2, 10 stepsx3) Pattern repeat function
Additional FunctionsCalibration off-set function, Key lock, Uninterruptible power for memory
Heater Circuit ControlSSR control
SensorK-thermocouple
Safety DeviceSelf diagnostic functions (temp. sensor abnormal, Heater disconnection, SSR- short, Automatic overheating prevention), Key lock function, Overheat prevention, Electric leakage breaker with over current protection
Internal Dimensions WxDxH600x500x500 mm
External Dimensions WxDxH710x651x870 mm
Internal Capacity150L
Shelf Plate With Standard Load~15kg/piece
Shelf Rest Step Number / Shelf Rest Pitch13 steps / 30mm
Power Source 50/60Hz115V 12.5A (with plug)
Weight~65kg
Shelf PlateStainless steel, 1pc on the bottom screwed
Shelf Plate / Bracket2 pcs. / 4 pcs.
Product Details
Circulation MethodForced air circulation
Operating Temp. RangeRoom temp. +10°C to 250°C
Temp. Adjustment Accuracy±1°C (at 210°C)
Temp. Distribution Accuracy±2.5°C (at 210°C)
Max. Temp. Reaching TimeApprox. 90 min.
Interior/Exterior MaterialStainless steel / Cold rolled steel plate with melamine resin baking finish
Heat Insulating MaterialGlass wool
HeaterStainless pipe heater/1.5kW
Fan Type / Fan MotorScirocco fan, Condenser type motor 10W
Cable Hole30mm I.D. (on the right side) 1pc.
Exhaust Port30mm I.D. x 2 (on top)
Observation Window250 x 280mm Chemical strengthening glassx3
Temp. Controller3 patterns program controller, PID control by microprocessor
Temp. Setting MethodDigital setting by up|down key
Temp. DisplayMeasurement temp. : Digital display by green LED / Setting temp. : Digital display by red LED
Timer1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs. 50 min. with timer wait function
Operation FunctionFixed temperature operation, Program operation, Auto start, Auto stop, Quick Auto-stop
Program ModeProgram operation : 3 patterns, 30 steps (30 stepsx1, 15 stepsx2, 10 stepsx3) Pattern repeat function
Additional FunctionsCalibration off-set function, Key lock, Uninterruptible power for memory
Heater Circuit ControlSSR control
SensorK-thermocouple
Safety DeviceSelf diagnostic functions (temp. sensor abnormal, Heater disconnection, SSR- short, Automatic overheating prevention), Key lock function, Overheat prevention, Electric leakage breaker with over current protection
Internal Dimensions WxDxH600x500x500 mm
External Dimensions WxDxH710x651x870 mm
Internal Capacity150L
Shelf Plate With Standard Load~15kg/piece
Shelf Rest Step Number / Shelf Rest Pitch13 steps / 30mm
Power Source 50/60Hz115V 12.5A (with plug)
Weight~65kg
Shelf PlateStainless steel, 1pc on the bottom screwed
Shelf Plate / Bracket2 pcs. / 4 pcs.
