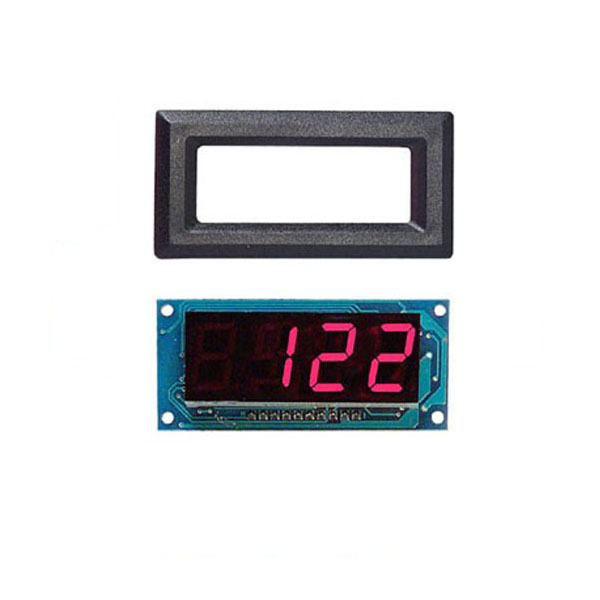

Buy Hoyt HDMO-36HR, DC Voltmeter, 2 V DC, Red

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Buy in Bulk 4 Applicable Promotion(s)

Buy 20 pcs, get 7% off
Save 7% each on Hoyt HDMO-36HR DC Voltmeter, 2 V DC, Red when you purchase 20 or more
Buy 10 pcs, get 5% off
Save 5% each on Hoyt HDMO-36HR DC Voltmeter, 2 V DC, Red when you purchase 10 or more
Buy 5 pcs, get 3% off
Save 3% each on Hoyt HDMO-36HR DC Voltmeter, 2 V DC, Red when you purchase 5 or more
Buy 3 pcs, get 1% off
Save 1% each on Hoyt HDMO-36HR DC Voltmeter, 2 V DC, Red when you purchase 3 or more

Quantity

Options and Related Products

Features

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Display
Digits	3-1/2 (±1999 count)
Type	7- segment LED (red)
Digit Height:	0.56 in (14.2 mm)
Polarity Indication	automatic "-" for neg input.
Decimal Point	3 position selectable
Overrange	three lower order digits blank for inputs >1999 & < -1999.
Inputs
Configuration	bipolar, differential
Full-Scale Input	±2 V
Input Offset Adjustment	auto zero
Input Impedance	>100 MΩ (±200 mV),-1 MΩ (other ranges)
Common Mode Range	±1 VDC
Common Mode Rejection	>86 dB
Protection	±350 VDC (±100 VDC for 200 mV range).
Input Bias Current	1 pA typical, 100 pA max.
Control Inputs	decimal point select, hold, span adjust trimpot
Performance
Sampling Rate	3.3 readings / s
Accuracy	± (0.1% + 2 counts) max.
Warmup, typical	10 min
Temperature Drift, typical	100 ppm / °C
Power Supply
Supply Voltage	+5 VDC ±5%
Supply Current, typical	200 mA
Environment
Operating Range	0 to 50 °C
Storage Range	-10 to 60 °C
Relative Humidity	0 to 95% non-condensing
Physical
Package Style	window mount
Dimensions	2.52" x 1.10" x 0.73"
Panel Cutout	2.05 x .81
Weight	20 g
Connection	10 pin

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Display
Digits	3-1/2 (±1999 count)
Type	7- segment LED (red)
Digit Height:	0.56 in (14.2 mm)
Polarity Indication	automatic "-" for neg input.
Decimal Point	3 position selectable
Overrange	three lower order digits blank for inputs >1999 & < -1999.
Inputs
Configuration	bipolar, differential
Full-Scale Input	±2 V
Input Offset Adjustment	auto zero
Input Impedance	>100 MΩ (±200 mV),-1 MΩ (other ranges)
Common Mode Range	±1 VDC
Common Mode Rejection	>86 dB
Protection	±350 VDC (±100 VDC for 200 mV range).
Input Bias Current	1 pA typical, 100 pA max.
Control Inputs	decimal point select, hold, span adjust trimpot
Performance
Sampling Rate	3.3 readings / s
Accuracy	± (0.1% + 2 counts) max.
Warmup, typical	10 min
Temperature Drift, typical	100 ppm / °C
Power Supply
Supply Voltage	+5 VDC ±5%
Supply Current, typical	200 mA
Environment
Operating Range	0 to 50 °C
Storage Range	-10 to 60 °C
Relative Humidity	0 to 95% non-condensing
Physical
Package Style	window mount
Dimensions	2.52" x 1.10" x 0.73"
Panel Cutout	2.05 x .81
Weight	20 g
Connection	10 pin

Note: Please read description carefully. Do not base your order on the picture presented.
