Aven, 26700-108, Mighty Mag Auto Focus Macro System, 22" 1080p HD Color Monitor, 26700-182 Lens
Mighty Mag Auto Focus Macro System
Achieve instant focus without the need to constantly refocus the lens. Ideal for inspecting multilayered objects such as PCBs. View crystal clear 1080p images on your HD monitor. System includes Aven’s Mighty Cam Auto Focus camera, heavy-duty post stand with focus mount, 22″ 1080p HD Color Monitor, 26700-182 lens, LED ring light with 96 adjustable LEDs.
1080p Imaging, Instant Auto Focus. Eliminate Eye Strain and Neck Fatigue.
Aven’s Mighty Mag Auto Focus Systems are designed to help you achieve your inspection tasks with ease. The autofocus system makes refocusing while repositioning a breeze. Includes heavy-duty post stand, adjustable LED ring light, 22″ 1080p HD color monitor, 1080p HD Color Auto Focus Camera, and Aven’s Macro Zoom lens.
Instant Auto Focus
View 1080p HD images without the inconvenience of having to constantly re-adjust the lens focus. The Mighty Cam Auto Focus is ideal for inspecting objects with multiple focus points such as PCBs and other layered objects.
Macro Zoom Lens
Wide zoom range for general inspection and analysis. It offers unsurpassed clarity and parfocal zoom capabilities.
- Magnification: see optical data
- Field of View: 142mm – 11mm
- Working Distance: 300m – 20mm
- Optical Focal Length: 12mm -36mm
- Adjustable Aperture: F2.8 – F16
Post Stand
- Aluminum powder coated base
- All metal construction
- UNC bolt and safety clamp included

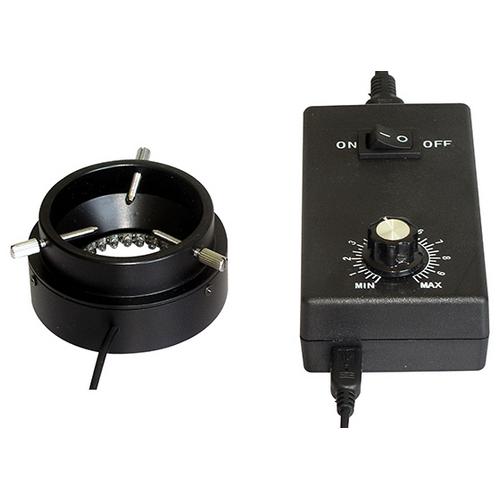

LED Ring Light
Includes Aven’s LED ring light for video zoom lenses. Compact source of LED lighting with a fully adjustable high resolution dimmer that provides uniformity and shadow free illumination. Consists of 96 LED lights that do not heat or flicker.
Remote Control
Control the on-screen settings menu with remote handset. Menu options include:
- Auto/Manual Focus
- Exposure
- White Balance
- Horizontal/Vertical Color Line Grids
- Brightness/Contrast/Sharpness settings
- Freeze Frame
- More
- Turn autofocus on/off. Adjust picture settings.

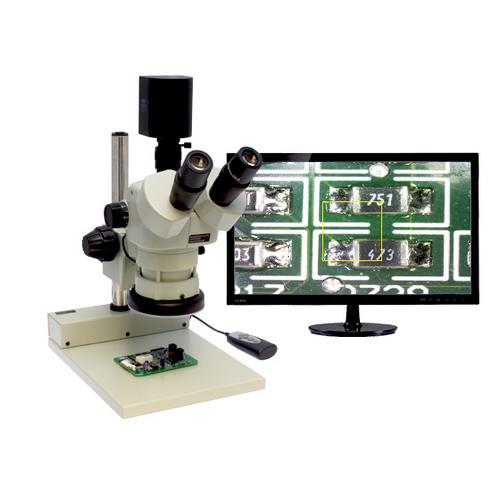

Auto Focus Microscope Systems Also Available
The Mighty Cam Auto Focus is compatible with any C/CS mount microscope or video lens.
Features:
- Magnification range: See optical data
- Field of view: 92.2mm – 9.6mm at a 6″ working distance
- Provides instant focus from any angle
- Sharp 1080p Full HD image
- Significantly reduces inspection time
- Includes USB mouse for access to settings menu
- Alleviate the eye strain and neck fatigue associated with frequent microscope use
