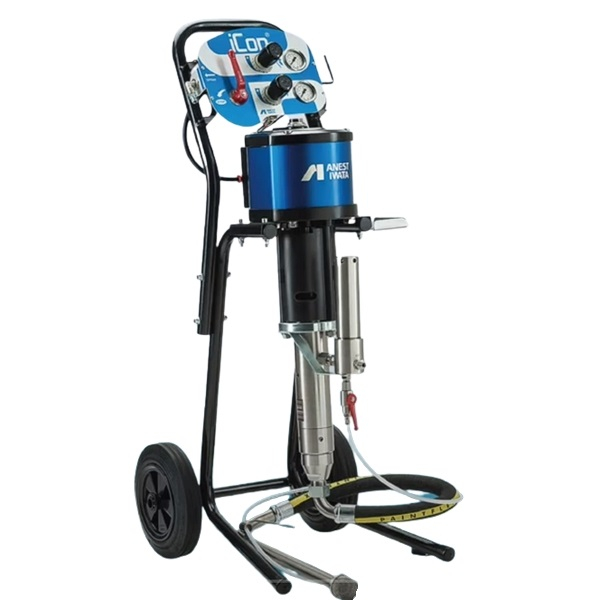

Anest Iwata 14000200 ICON-M433N-S4 Multi Spray Unit 36:1, Cart Frame

  • Brand Anest Iwata
  • Part # 14000200
  • Model # ICON-M433N
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

14000200 Includes Only:

  • Multi Spray Unit ICON-M433N-S4
  • 2 Air Pressure Regulators
  • Delivery Paint Filter (TF-8N)
  • Dip Tube with Filter
  • Fluid Recirculation Hose
  • Overpressure Safety Valve

From general wood and metal painting to exterior surface coating up to boat repair, ICON® Multi Spray Pumps for medium to high pressure applications are ideally suited to the requirements of the industrial sector. ICON® Pumps' strong points are their extremely simple assembly, disassembly, and maintenance, along with their excellent reliability.

See more product information See less
Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Plunger PumpPP-3688N
Weight46.5 Kg
Dimensions (Lxwxh)496 x 627 x 1164 mm
Paint FilterDelivery Paint Filter TF-8N (100 Mesh)
Fluid Suction Filter15 mesh
Max. Fluid Working Pressure252 bar (22.4 MPa)
Max. Air Inlet Pressure7.0 bar (0.7 MPa)
Pressure Ratio36:1
Working Temperature5°-40° C
Noise Level99.7 dB(A)
Compressor Required Power>1.5 Kw
Max. Volume/Min5.2 l/min
Air Supply Nipple (To Gun)G1/4"
Air Supply Nipple (To Pump)G1/4"
Fluid Supply Nipple (To Gun)NPSM 1/4"
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Plunger PumpPP-3688N
Weight46.5 Kg
Dimensions (Lxwxh)496 x 627 x 1164 mm
Paint FilterDelivery Paint Filter TF-8N (100 Mesh)
Fluid Suction Filter15 mesh
Max. Fluid Working Pressure252 bar (22.4 MPa)
Max. Air Inlet Pressure7.0 bar (0.7 MPa)
Pressure Ratio36:1
Working Temperature5°-40° C
Noise Level99.7 dB(A)
Compressor Required Power>1.5 Kw
Max. Volume/Min5.2 l/min
Air Supply Nipple (To Gun)G1/4"
Air Supply Nipple (To Pump)G1/4"
Fluid Supply Nipple (To Gun)NPSM 1/4"
Note

Note: Please read description carefully. Do not base your order on the picture presented.
